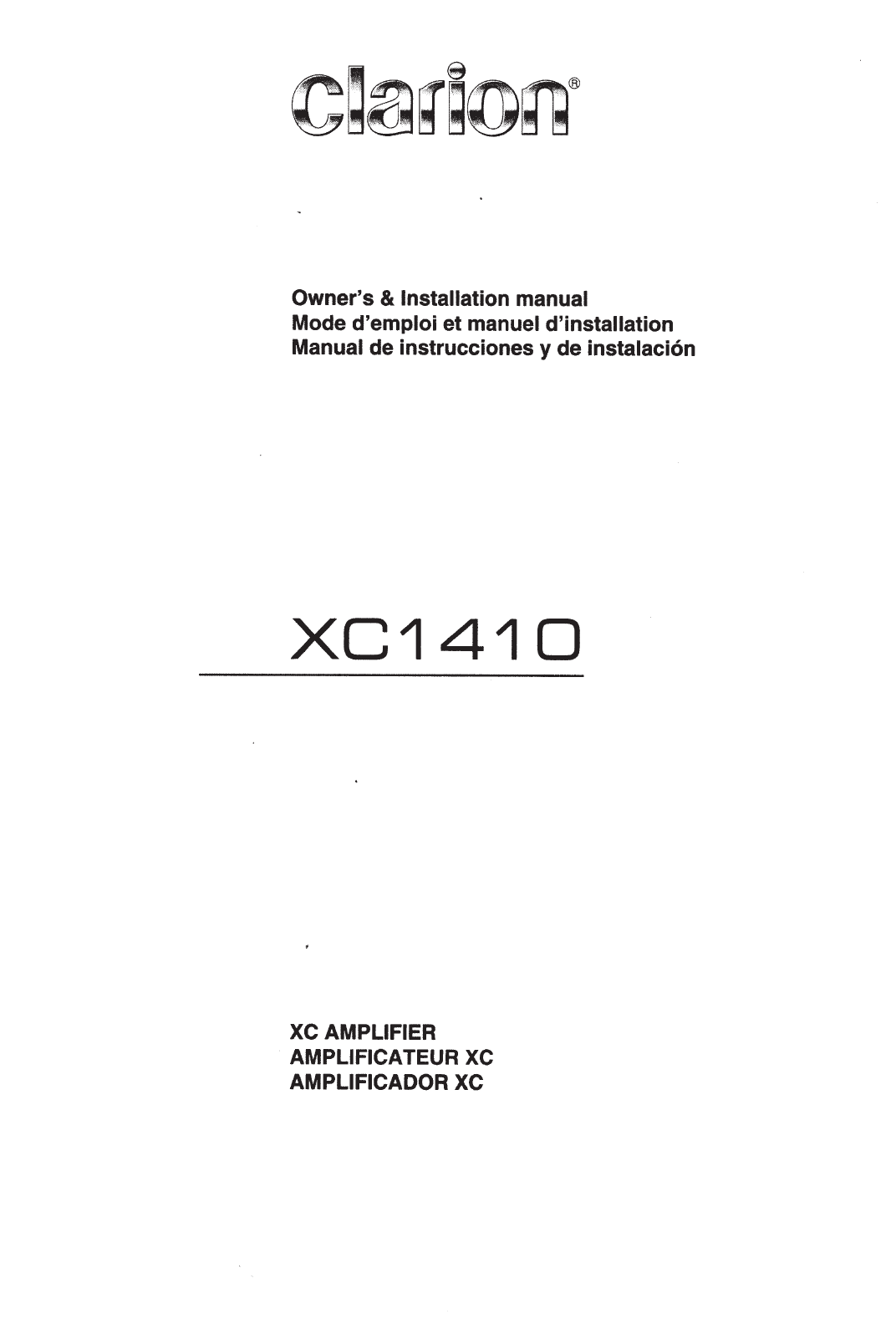

Owner's & Installation manual Mode d'emploi et manuel d'installation Manual de instrucciones y de instalaci6n XC1410 XC AMPLIFIER A

clarion CLARION 1 YEAR LIMITED WARRANTY For USA and Canada only This Clarion product purchased from an authorized Clarion dealer are warranted against

ABOUT THE MANUAL AND WARRANTY This manual describes the basic requirements to install the Clarion XC141 0 amplifier. The installation of this amplifie

G) Red Wire: to+ 12V Battery terminal. Be sure to properly fuse within 18" of the battery. (?) Green/Black: to Rear Left Speaker(-) (~) Purple: t

INSTALLATION This section suggests Mounting and Wiring Precautions for installing the Clarion XC141 0. If you do not posses the necessary tools and in

WIRING AND APPLICATIONS The Clarion XC141 0 4-channel audio amplifier can be used in a variety of system applications. Here are a few examples to hel

Option 2 4-Channel Full Range stereo system using head unit with (high level) speaker input White/Black FR LT (-) Gray FR RT (+) Gray/Black FR RT (-)

TROUBLESHOOTING Problem No Audio. Amplifier not powering on. (LED turned off) Solution 1. Remote turn-on voltage. Check remote connections at amplifie

12/2012 Clarion Corporation of America All Rights Reserved. Copyright© 2012 Clarion Corporation of America Printed in China I lmprime au Chine I lmpre

clarion GARANTIE LIMITEE DE 1 AN CLARION Pour le Canada et les Etats-Unis seulement Ce produit Clarion vendu par marchand autorise Clarion est garanti
